Product Technical Performance
In driving mode, the maximum driving speed can reach 40km/h
Adopting precise electronic control device to control vehicle in working and driving, preventing adverse factors during driving.
CAN bus integrated with joystick, capable of performing multiple composite tasks with one hand.

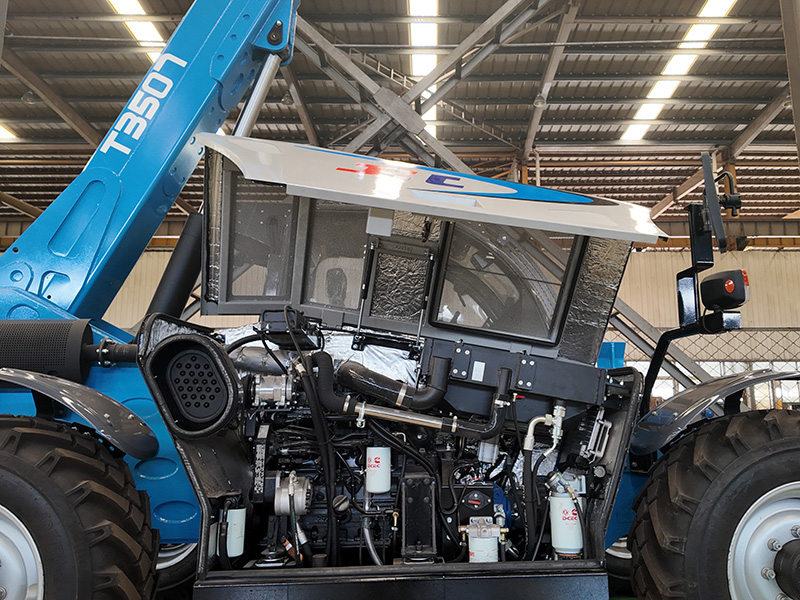

Independent cooling system, engine compartment cooling outlets designed with reverse-blow function.
Product Technical Features
The inching function, which allows precise control of the vehicle in ultra-low speed, makes it safer to lift goods with forks.
Adopts a 360 °full view cab, with optional operation monitoring and reversing camera.
The steering wheel can be adjusted high or low, and the armrest can be adjusted up or down.
Adopts aviation style seats, air cushion combined with hydraulic shock absorbers offers more comfort for operator.
Electro-hydraulic proportional control system, the hydrostatic drive system is capable of achieving continuous speed variation.

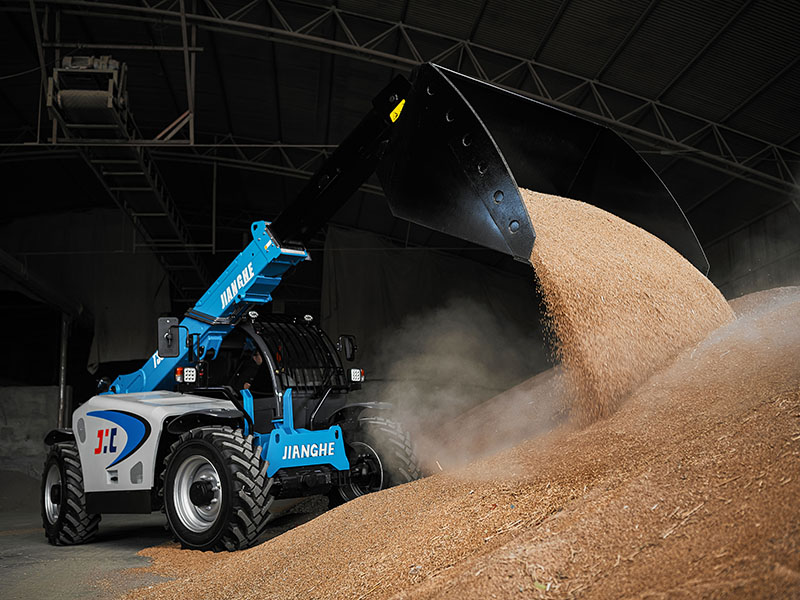

Two control modes for bucket operation and fork operation, which can be quickly switched with one click.
Optional bucket shaking function for quick dumping of materials.
Product Technical Parameters
Parameter | T3507 |
Vehicle | |
Rated lifting capacity | 3500kg |
Maximum lifting height | 7150mm |
Length (Excluding Fork/Including Fork) | 5075/6465mm |
Width | 2300mm |
Height | 2470mm |
Operating weight | 8250kg |
Performance | |
The forward extension length of the fork at its highest point | 950mm |
Maximum horizontal outreach | 4010mm |
Load at maximum forward extension of fork | 1250Kg |
Ground clearance | 400mm |
Minimum turning radius | 3800mm |
Maximum driving speed | 40km/h |
Full load climbing ability | 55% |
Engine | |
Engine model | Cummins QSF 3.8 |
Emission standard | Euro V |
Engine power | 90kw |
Maximum torque | 500/1500 Nm/rpm |
Drive/Steering | |
Drive mode | Hydrostatic Drive |
Driving Type | 4x4 |
Steering mode | 2ws, Crab Steer, 4ws |
Miscellaneous | |
Tire model | 405/70-24-20PR-TL |
Fuel tank capacity | 120L |
Hydraulic oil capacity | 150L |

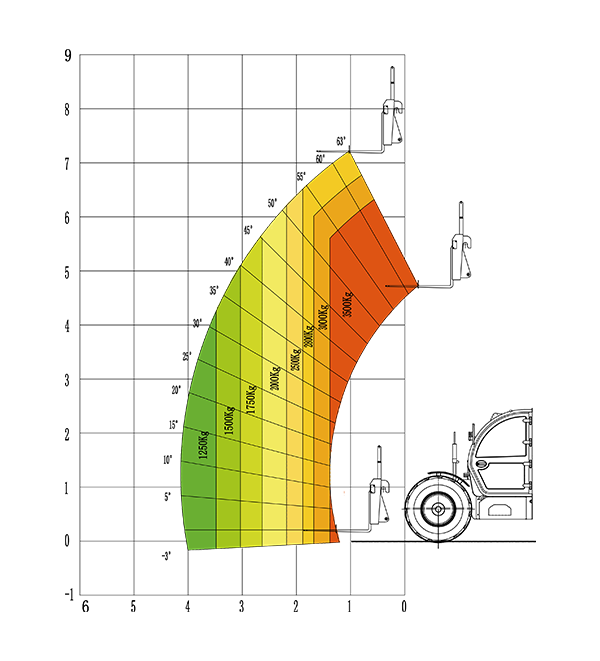

Product load chart
