MEWPs
We are deeply involved in the domestic aerial working platform industry, committed to improving automation levels and providing both standardized and customized solutions to customers’ needs, driving ourselves as a leading supplier in the aerial working platform market.
Scissor Lift

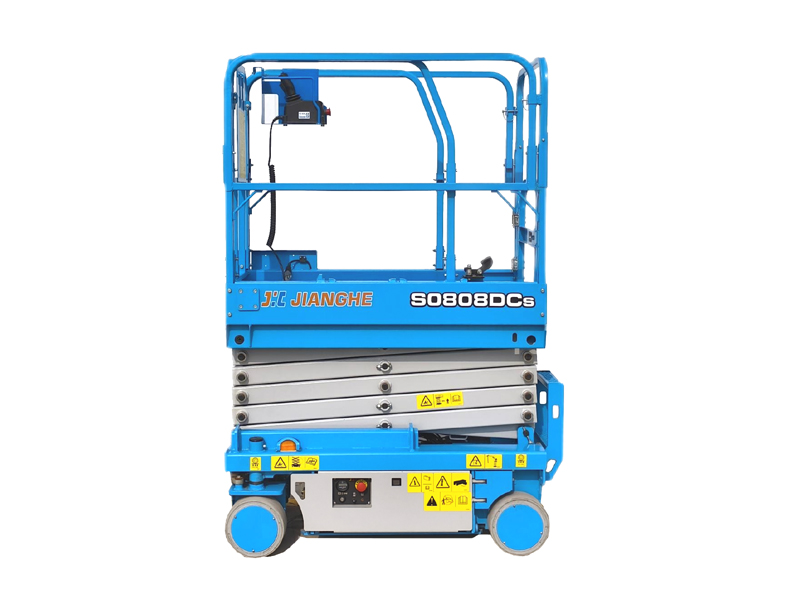

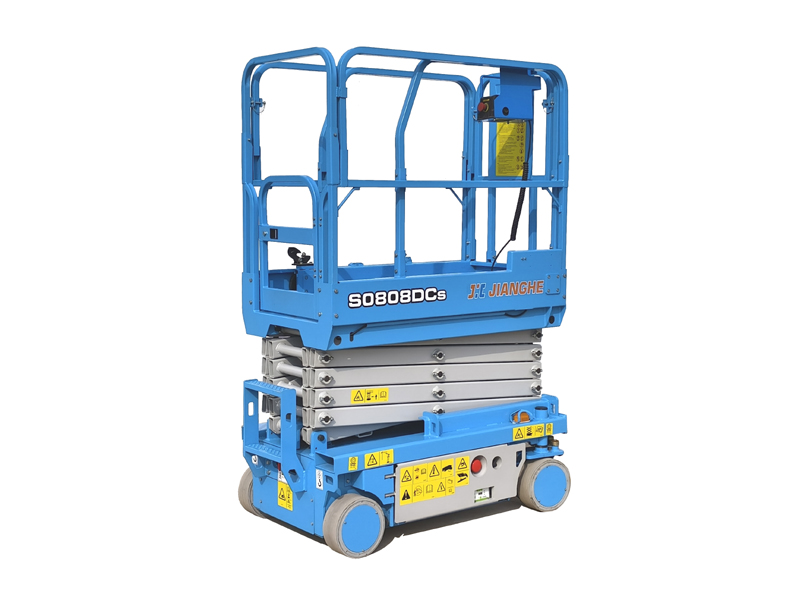

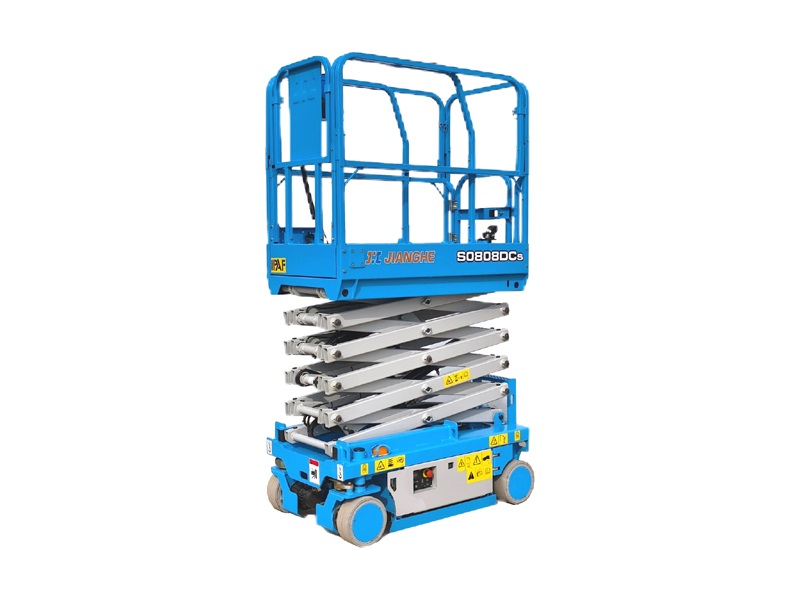

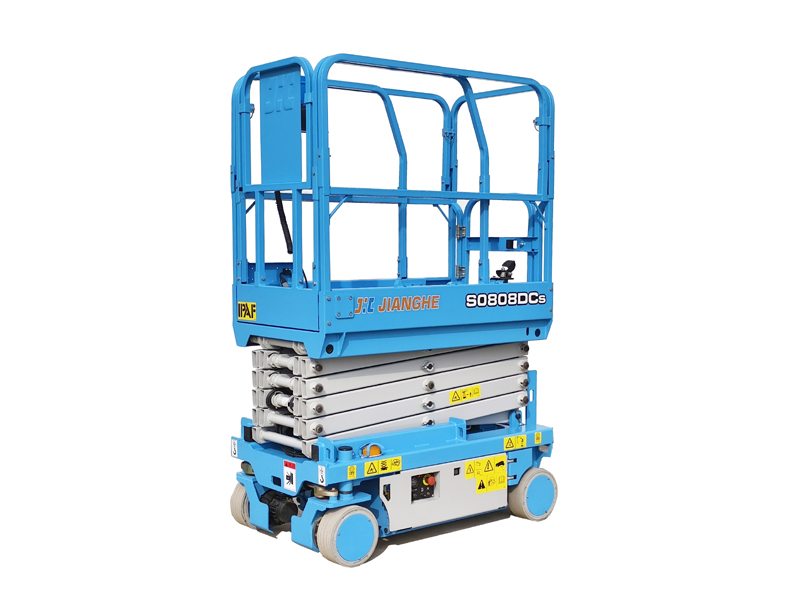

S0808DCs
The mini series scissor lift aerial work platform has a compact body, lighter weight, smaller turning radius, compact and flexible operation, and convenient and fast transportation.
Capacity
240kg
Extended Platform
113kg
Max Working Height
5.8m
Total Weight
950kg

Product technical performance

With the function of automatic walking, it can walk fast and slow under different working conditions.

The machine can be operated to continuously complete lifting, lowering,forward, backward, steering and other actions when working at certain height.

The motor is with continuously variable speed. It effectively extends the service life of the battery and motor, and the motor only consumes the energy when working.


Product Technical Characteristics

With the principle of differential steering and  the small angle steering system, which makes the machine has excellent flexibility.

Equipped with full-automatic charger, it can automatically complete the whole process of charging, and will automatically stop charging when the battery is full.

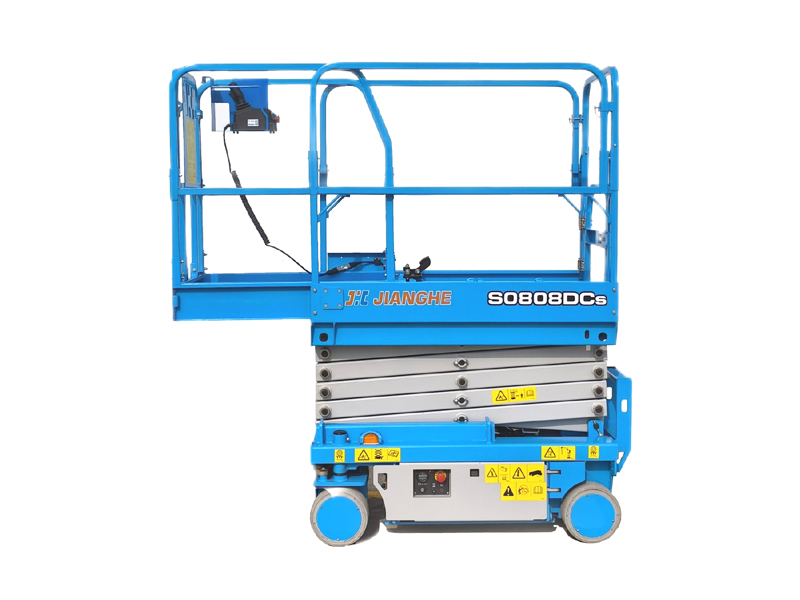

The working platform can be extended outwardly for expanding the working range and meeting the special needs of some users.

Equipped with overload protection function and emergency descending system, which provide mandatory protection for personnel who are not familiar with this equipment.


Product Technical Parameters

Parameter items/model specifications

S0608TR

Capacity

240Kg

Extended platform Capacity

113Kg

Max Working height

5.8 A/m

Length

1.55/1.47 C/m

Width

0.82 D/m

Total height(Rack unfolded)

1.98m

Total height -E (Rack  folded)

1.66m

Platform size (L×W-F)

1.35×0.74×1.1 m

Gradeability

25%

Total weight

950Kg
