Telehandlers
At Jianghe, we are dedicated to manufacturing world-leading telehandlers! The Jianghe-branded telehandler officially launched in 2017. Since then, Jianghe has adhered to the principles of positive values, top-tier performance and high reliability for earning wide-spread market recognition.
Mining

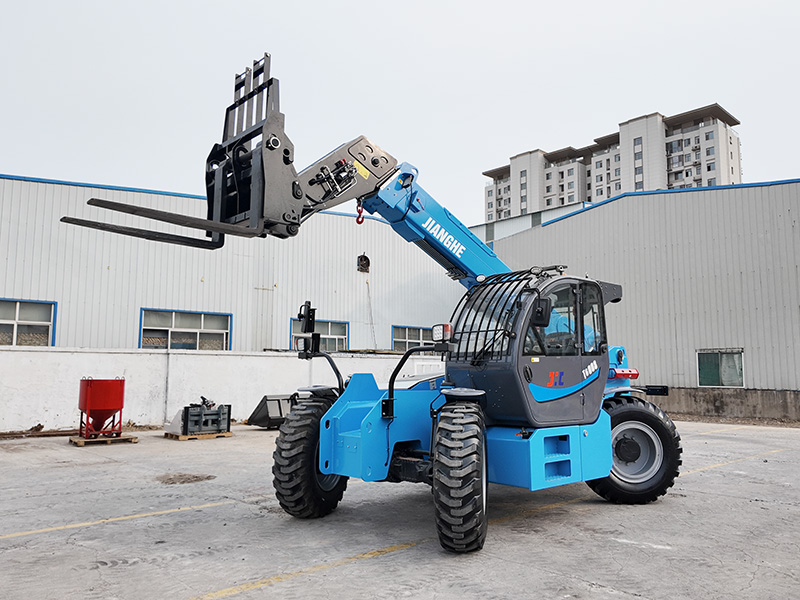

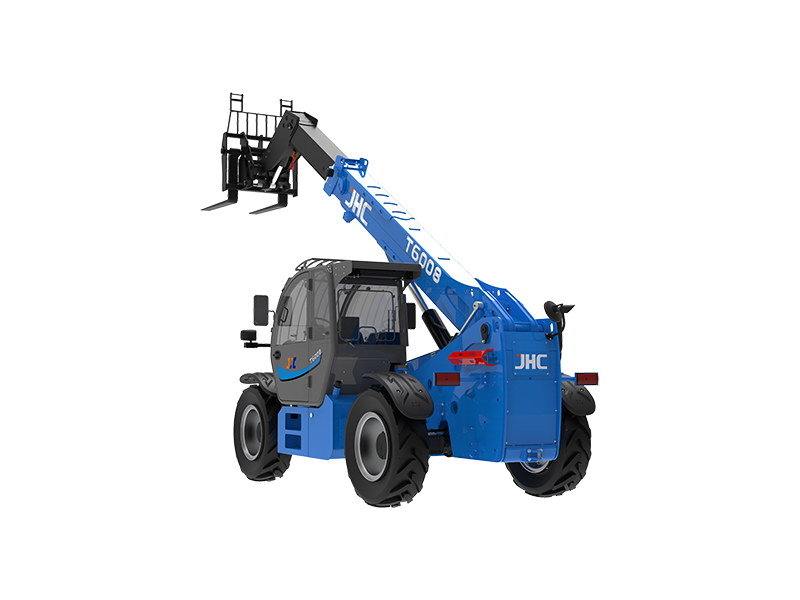

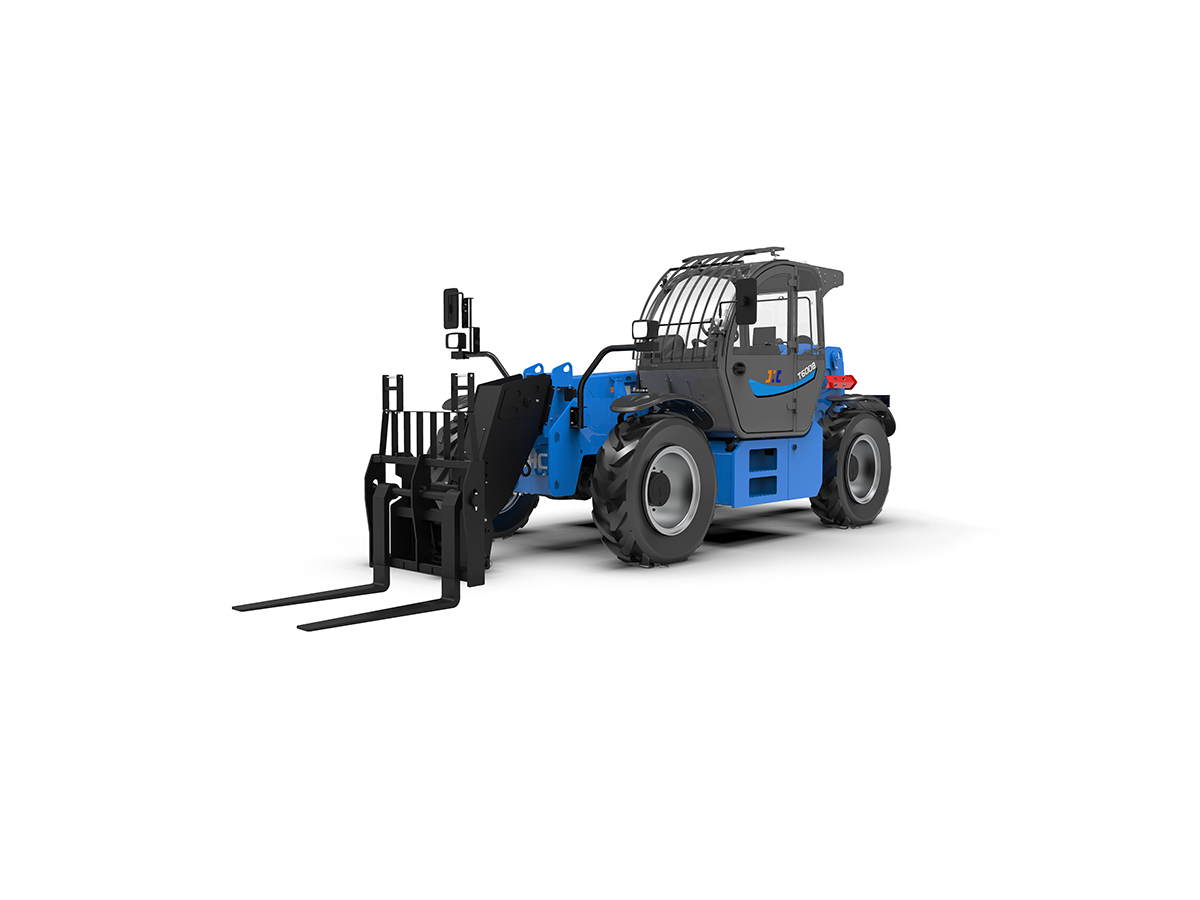

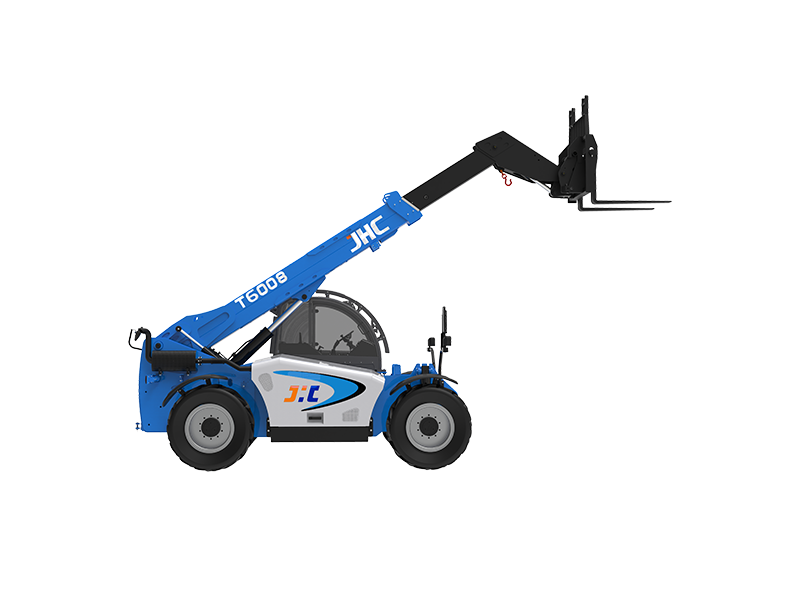

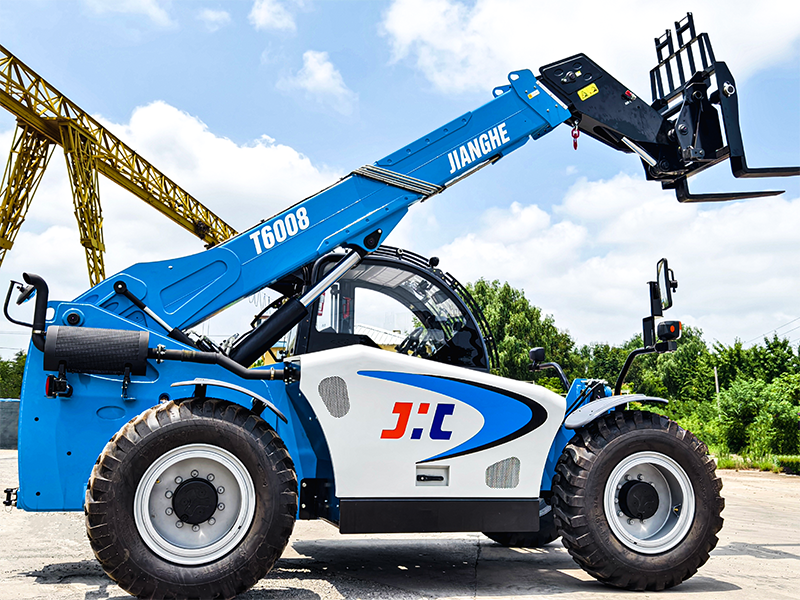

T6008
It can adapt different attachments such as forks (standard), buckets, hooks, work buckets, sweepers, and shovels according to different working scenarios. It is easy to achieve multi-purpose use of one machine.
Rated capacity
6000kg
MAX working height
8300mm
MAX horizontal outreach
4500mm
Engine power
100KW

Product Technical Features

The  machine is fully electronically controlled and with CAN bus communication.

The boom assembly adopts electro-hydraulic proportional control for easy composite movements with ease.Hydrostatic four-wheel drive enables the vehicle to achieve continuous speed change.

Three steering modes: front wheel, four-wheel, and crab, it can achieve flexible switching without braking to stop and has automatic centering function.

The telehandler adopts hydrostatic drive system, with characteristics of smooth and efficient power output, which is especially suitable for frequent start and stop, low-speed and heavy-duty working conditions, while reduces energy consumption and operation intensity.



Product Technical Features

The boom can achieve synchronous extension of boom and automatic leveling of attachments during operation, always keeping the goods in a horizontal state.

The anti rollover function, it constantly checks the load status of the rear axle and can quickly alert when exceeding the loading limit.

Independent cooling system can realize automatic control of start and stop, with reverse-blow function, quickly cleans external debris.

Driving in inching mode, realizes micro movement of the telehandler, improving the accuracy and safety of the operations.

Comply with emission standards of European Stage 5 and other local regulations of emission.



Product Technical Parameters

Parameter

T6008

Vehicle

Rated lifting capacity

6000Kg

Maximum lifting height

8300mm

Length (Excluding Fork/Including Fork)

5850/7240mm

width

2460mm

height

2600mm

Operating weight

10965/11650Kg

Performance

The forward extension length of the fork at its highest point

770mm

Maximum horizontal outreach

4500mm

Load at maximum forward extension of fork

1750/2000mm

Ground clearance

430mm

minimum turning radius

4200mm

Maximum driving speed

40km/h

Full load climbing ability

50%

Engine

Engine model



Cummins QSF 3.8

emission standard

Euro V

Engine power

100kw

Maximum Torque

550/1500Nm/rpm

Drive/Steering

Drive mode

Hydrostatic Drive

Driving Type

4x4

Steering mode

2ws, Crab Steer, 4ws

Miscellaneous

Tire model

15.5-25-20PR-TL

Fuel tank capacity

150L

Hydraulic oil capacity

180L

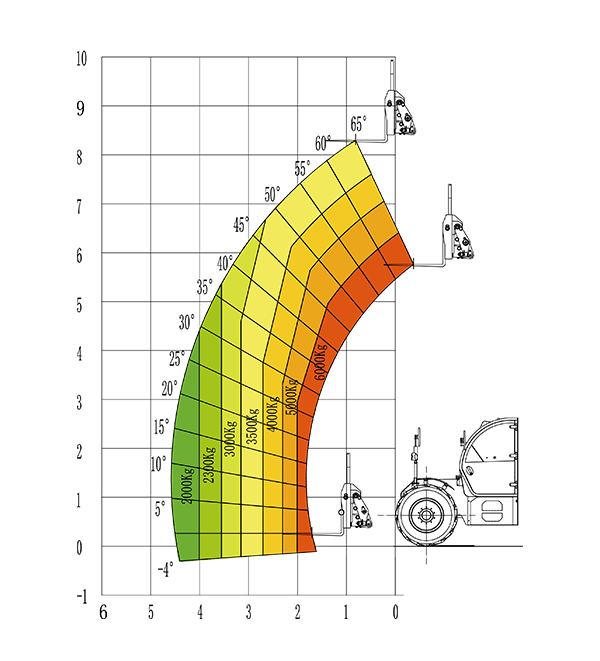

Product load chart
