Product Technical Performance

The  machine is fully electronically controlled and with CAN bus communication.

The boom assembly adopts electro-hydraulic proportional control for composite movements with ease.

Hydrostatic four-wheel drive enables the vehicle to achieve infinite speed change, with a maximum speed of up to 35km/h.

Three steering modes: front wheel, four-wheel, and crab, it can achieve flexible switching without braking to stop and has automatic centering function.

The telehandler adopts hydrostatic drive system, with characteristics of smooth and efficient power output, which is especially suitable for frequent start and stop, low-speed and heavy-duty working conditions, while reduces energy consumption and operation intensity.

Product Technical Features

The boom can achieve synchronous extension of boom and automatic leveling of attachments during operation, always keeping the goods in a horizontal state.

The anti rollover function, it constantly checks the load status of the rear axle and can quickly alert when exceeding the loading limit.

Independent cooling system can realize automatic control of start and stop, with reverse-blow function, quickly cleans external debris.

Driving in inching mode, realizes micro movement of the telehandler, improving the accuracy and safety of the operations.

Comply with emission standards of European Stage 5 ,and other local regulations of emission.

Product Technical Parameters

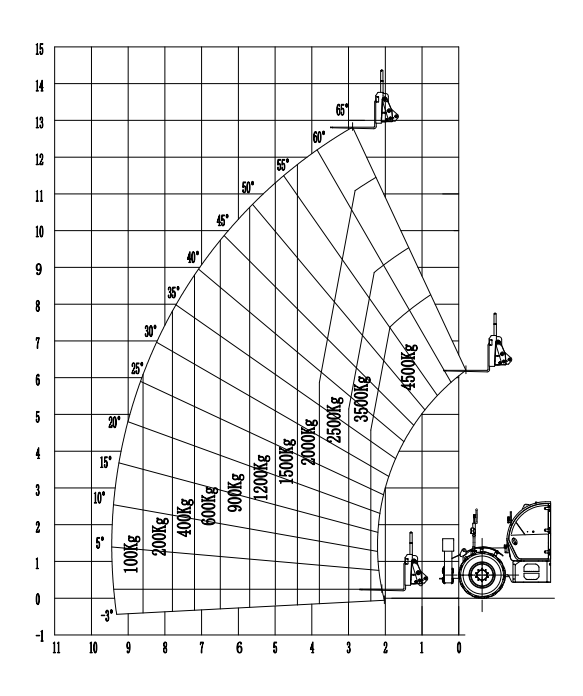

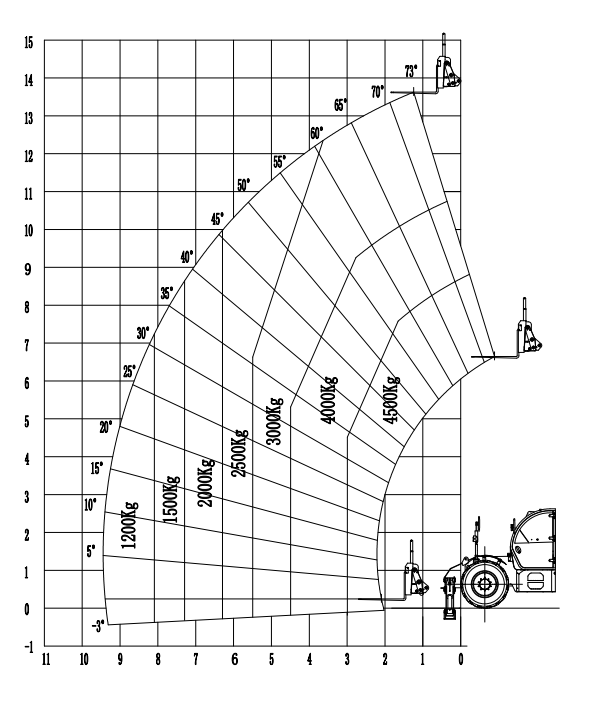

Product load chart
