Product Technical Performance
The machine is fully electronically controlled and with CAN bus communication.
The boom assembly adopts electro-hydraulic proportional control for easy composite movements.
Hydrostatic four-wheel drive enables the vehicle to achieve infinite speed change, with a maximum speed of up to 40km/h.
Three steering modes: front wheel, four-wheel, and crab, it can achieve flexible switching without braking to stop and has automatic centering function.
Product Technical Features
The boom can achieve synchronous extension and automatic leveling of attachments during operation, always keeping the goods in a horizontal state.
Automatic detection function for positioning of outriggers.
The anti rollover function, it constantly checks the load status of the rear axle and can quickly alert when exceeding the loading limit.
Independent cooling system can realize automatic control of start and stop, with reverse-blow function, quickly cleans external debris.
Continuous flow auxiliary hydraulic system and engine safe start protection function.
Rear axle has 3 operational modes: free floating, buffering floating, and automatic locking functions; interlock function between superstructure and chassis, as well as restriction for locking of the superstructure.
Product Technical Parameters
Parameter | RT6025 |
Vehicle | |
Rated lifting capacity | 6000kg |
Maximum lifting height | 24700mm |
Length (Excluding Fork/Including Fork) | 7955/9360mm |
Width | 2500mm |
Height | 3150mm |
Operating weight | 20150kg |
Performance | |
The forward extension length of the fork at its highest point | / |
Maximum horizontal outreach | 21290mm |
Load at maximum forward extension of fork | 260kg |
Ground clearance | 400mm |
minimum turning radius | 4400mm |
Maximum driving speed | 35km/h |
Full load climbing ability | 35% |
Engine | |
Engine model | Cummins QSF 3.8 |
Emission standard | Euro V |
Engine power | 115kw |
Maximum torque | 620/1500 Nm/rpm |
Drive/Steering | |
Drive mode | Hydrostatic Drive |
Driving Type | 4x4 |
Steering mode | 2ws, Crab Steer, 4ws |
Miscellaneous | |
Tire model | 445/65-22.5-20PR-TL |
Fuel tank capacity | 280L |
Hydraulic oil capacity | 300L |

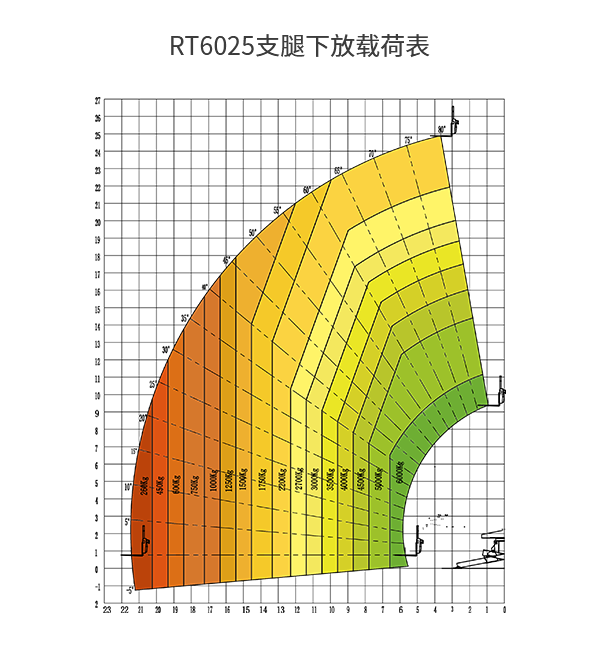

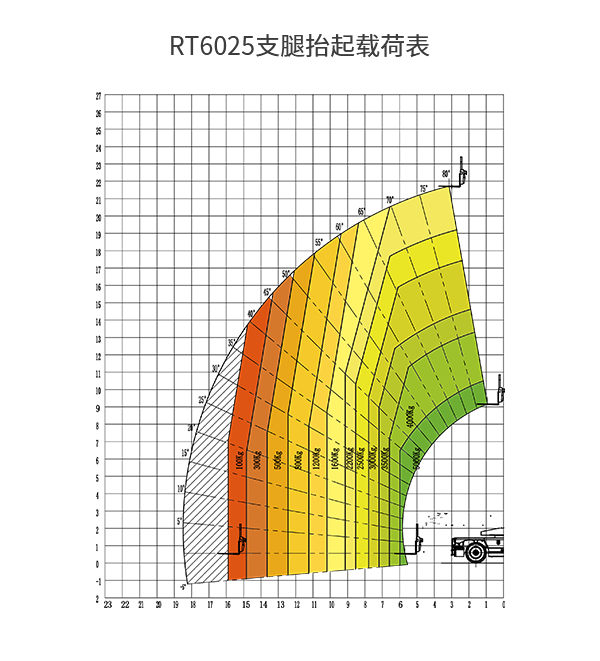

Product load chart
